ROOF in Aliance, NC

Began installation 16 April, 2012. Roof is about 25.5 square.  (2552 sq. ft.).
New roof material (in order of use) =

• cushion underlayment : ¼" fan-fold   Styrogreen®

• architectural eve trim
• custom color matching flashing around chimney

• profile matching foam eve closures
• metal roof : 29 gauge residential (ag) panel (low profile ¾" ribs @ 9"). Color = Berry
• fasteners : #8x1½" matching wood screws (w/domed washer and gasket) 33 per 3'x17'panel
• corner trim used as rake (gable) trim to reduce likelihood of  "oil-can" effect
• low profile ridge-cap with mesh (vented) closures

Retrofit installation =

• remove drip-edge at eves and excess shingles (over-hang) at entire perimeter.

• install over existing shingles, This method, along with fan-fold, provides better protection and insulating properties.


Click underlined text to see additional information on materials.
Exact location and other information omitted to protect customer's privacy.

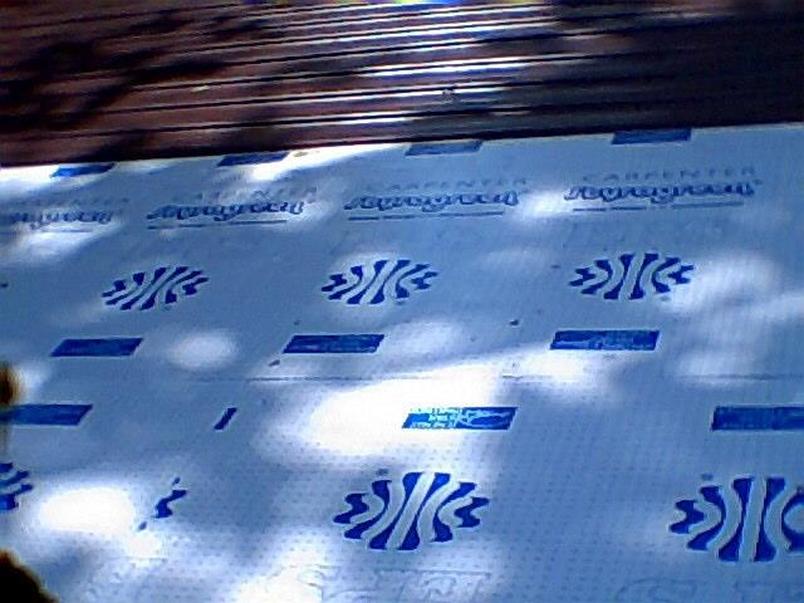

Showing insulation/underlayment and panels Click picture to see more information on this insulation.. http://www.trademarkia.com/styrogreen-77445787.html

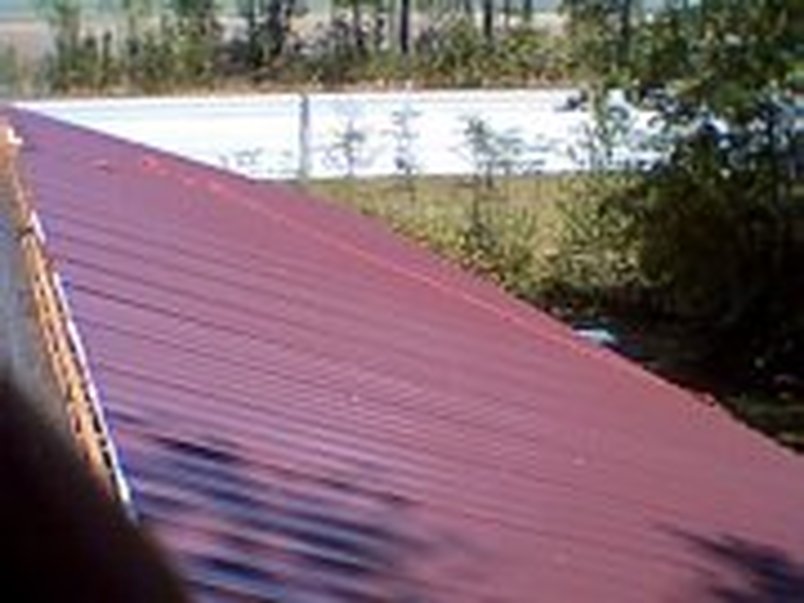

Front half of roof in place. Metal by: CMBC Click picture to see their web-site.

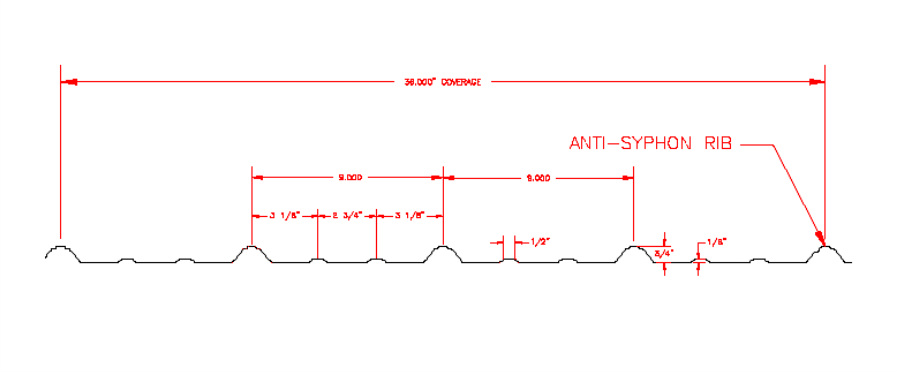

This is the profile of the panel used

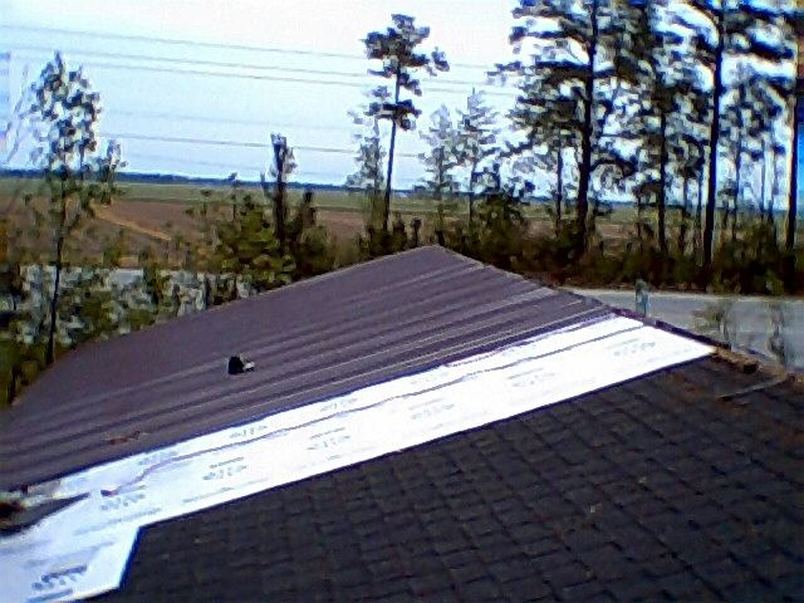

Back side on the way. Click picture to leave a comment on forum

Peak box for rake (gable) made from corner-trim.More pictures on facebook. https://www.facebook.com/media/set/?set=a.10150757698993637.434188.342767458636&type=1

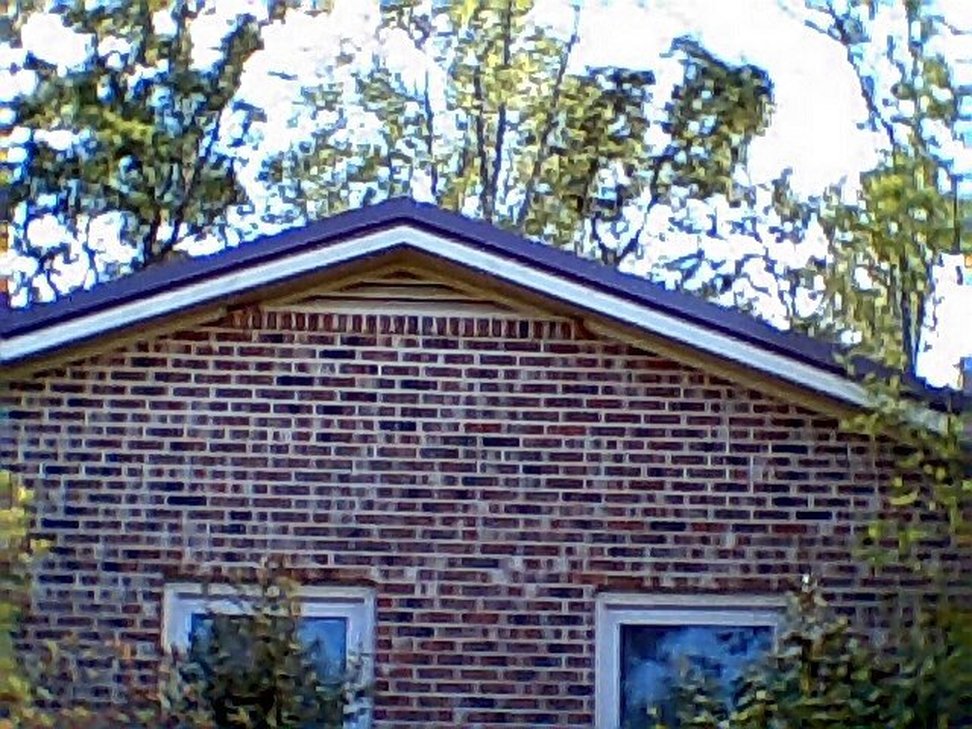

North gable. used item pictured above at peak

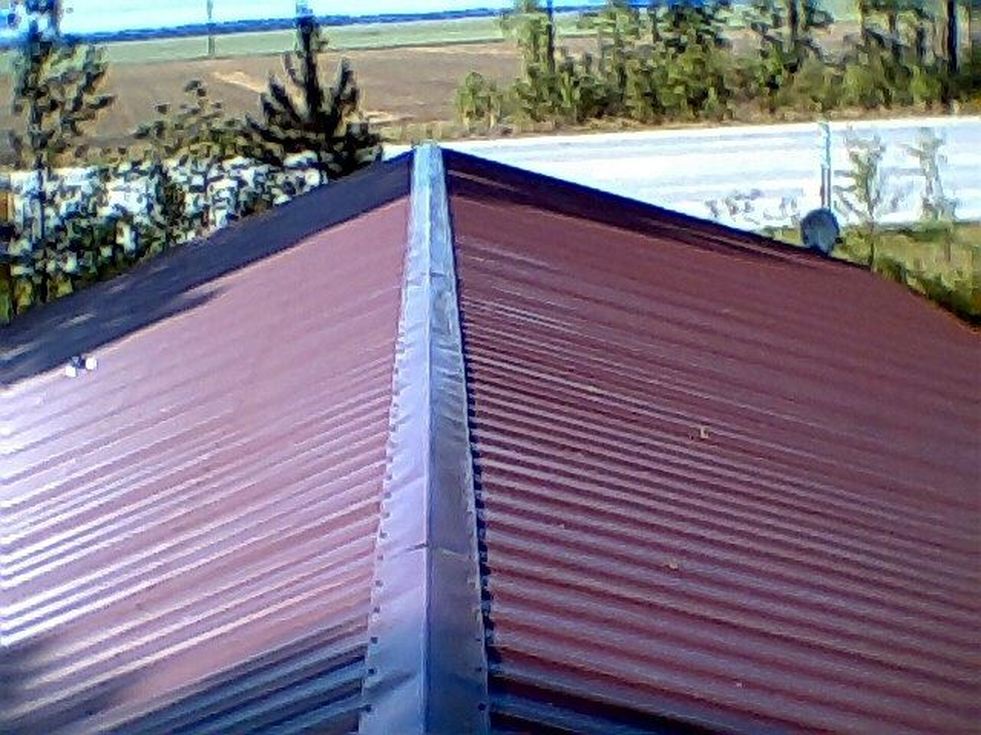

Low Profile vented ridge

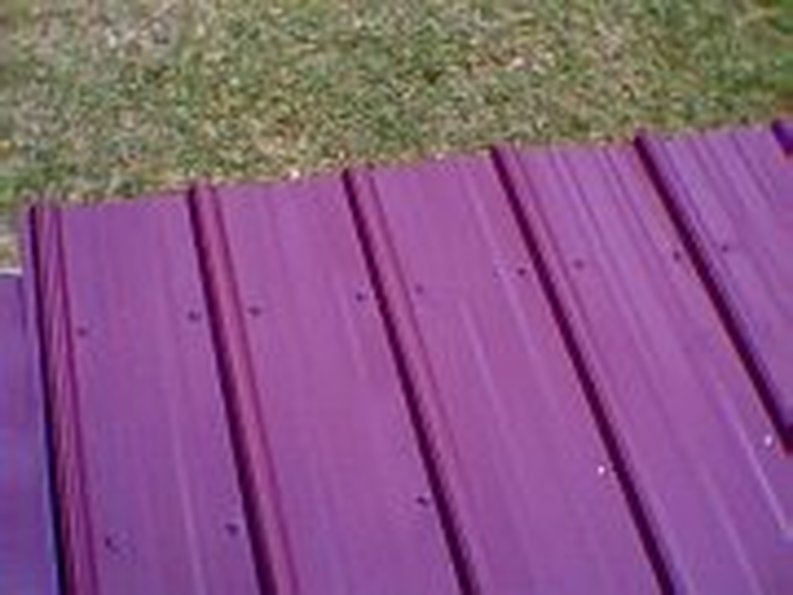

Showing eve. double screwed flats at eve (only). next line of screws 14" above, then every 36 "
